3. Material 60° shore A silicone;
(1) Tactile Characteristics of Keys:
(2) Standard Properties for Various Applications:
| Application | Phone | TV&VTR | Electronic Calculator | Car Stereo | Electronics | Type Writer |
| Stroke | 1.5-3.5 | 0.1-1.5 | 0.3-0.6 | 1.5-2.0 | 0.3-0.6 | 3-4 |
| Actuation Force | 120-200g | 30-100g | 60-90g | 60-100g | 60-90g | 70-90g |
| Life (x106) | 100-200 | 100-150 | 50-80 | 50-60 | 10 | 1000-1500 |
(3 )Typical Keyboard Specifications:
| | Conductor | Insulator |
| Material | Carbon Pill | Silicone |
| Durometer (Shore A) | 65±5 | 30-80 +/- |
| Tensile Strength (kg/cm2) | ≥60 | ≥70 |
| Tear Strength (kg/cm) | >9 | >12 |
| Compression Set (%) after 22hrs at 175℃ | <30 | <35 |
| After 22 hrs at 175℃ Specific Gravity at 25℃ | 1.18 | 1.11-1.18 |
| Volume Resistivity(Ohm/CM) | 2-10 | 1x1015 |
| Contact Resistance | ≤200ohm at 12V D |
| Insulations Resistance | ≥100Mohm at250V DC |
| Max Contact Loading | 24V dc 100mA |
| Operation Temperature | -40℃ to +150℃ |
| Storage Temperature | -50℃ to +180℃ |
| Surface Finishing | Print silicone oil, inferior silicone oil, PU oil, drop glue, plastic joint, laser, PC joint |
Silicone rubber keypads are the most widely used form of switch technology today. We offer reliability, long life and design flexibility. Conductive rubber switches and keypads were originally developed for the electronics industry to meet the increasing demand for inexpensive momentary switches. Conductive rubber keypads became desirable because they look and feel like traditional push-button style switches, but do not have their inherent disadvantages.
Since their introduction over 30 years ago, conductive rubber switches and keypads have gained enormous popularity and wide-range acceptance because of their reliability, long operational life and excellent tactile feel.
Innovative key coatings for our silicone rubber keypads are silicone, parylene, and Dura (Hard Coat). Silicone rubber keypads can be designed for applications exposed to water and hydrocarbons. Enhanced graphics and lighting options allow your product to incorporate features not found on standard silicone.
Silicone Rubber Benefits:
Silicone rubber is an excellent choice for device operation controls. It possesses the following characteristics;
• Excellent resistance to both heat and low temperature (-55℃ to 250℃);
• Minimum noise generation due to soft and elastic contact structure;
• Minimum abrasion and high resistance to SO2 and oxidation even in heavy humidity;
In addition, silicone rubber offers several features that make its design and usage flexible;
• Design both tactile and linear feedback;
• Translucent materials available ;
• Cost effective;
• Multi-color designs easily accommodated;
• Water and contamination resistant ;
Cosmetically appealing, 3-D Rubber Keypads offer the reliability of a membrane or PCB-substrate switch, with the three dimensional look and tactile feel of a silicone rubber keypad for a variety of applications including medical, industrial and commercial products.
|
|

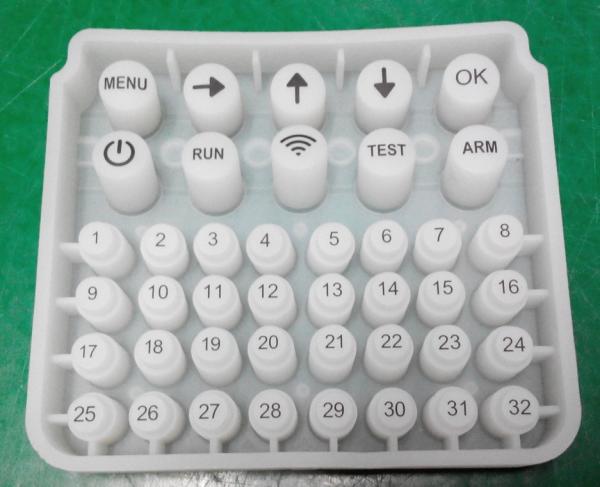

Customizing Industrial Control Rubber keypad | 141221 Images
|
